LONGER PUMP Basic Peristaltic Pump WT600-3J

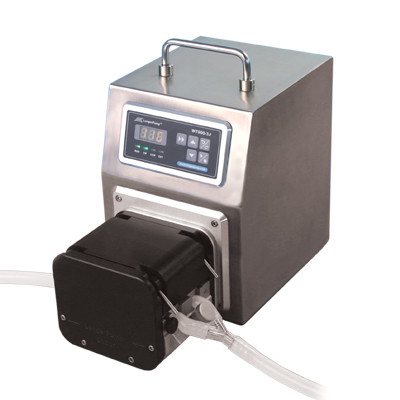

LONGER Basic Peristaltic Pump WT600-3J

WT600-3J pompa IP 55 koruma sınıflı olup sulu ve tozlu ortamlarda kullanıma uygundur. Yüksek torglu, yüksek verimlilikte ve bakım gerektirmeyen DC motorludur. Max 600 devirlik bir model olup gücü 2 başlıklı olarak kullanıma uygundur.

Speed: 60-600 rpm
Speed accuracy: +- 1%
Speed resolution: 1 rpm
Output torque : >1.50 N.M
Display: 3 Digital LED display rpm
Memory Function: Automatic memory speed, running direction and machine ID.
External control input: Start/stop, direction, speed control (0-5V,0-10V,0-20mA, 0-10KHz)
Communication port: RS485
Control Output: Start/stop, direction and speed.
Power supply: AC 176-264V 50Hz/60Hz
Power consumption: <190W
Cooling mode: Natural cooling heat
IP rating: IP55
Operation condition: Temperature 0 to 40  Relative humidit <80%
Dimensions (L x W x H): 273 x 190 x 272(mm)
Weight: 7.3kg
